Cleanliness Testing Equipment

CLS400U ultrasonic baths are especially suitable for extracting contamination from small components such as fluid circuits, precision machinery, electronics and medical devices with high precision requirements that are difficult to handle individually because they can be sampled in bulk. By directly or indirectly applying ultrasonic waves to liquids and particles contaminants, the adhesion of insoluble particles contaminants is disrupted, causing them to disperse in the liquid to collect particles on the filter membrane. CLS400U ultrasonic cleanliness cabinet with 400mm*200mm(L*D) ultrasonic tank integrates pressure-rinsing, spray cleaning, ultrasonic cleaning, membrane sample preparation (particle extraction).

CLS600P-MX technical cleanliness extraction system complied with ISO 16232 and VDA 19.1 standards is the most commonly used extraction method, which covers a large portion of the requirements for particle extraction from components which require low blank value. CLS600P-MX technical cleanliness cabinet with 600 * 600 * 800mm (L*W*H) ceramic coating operation chamber for small to midsized components, the technical cleanliness cabinet with function as below: pressure-rinsing cleaning, spray cleaning, side wall spray self-cleaning, membrane sample preparation (particle extraction), online filtration and recovery of cleaning agents, and circulating fine filtration.

SinAPC15A technical cleanliness inspection system is used for cleanliness testing of automotive component samples. It can automatically count and analyze the type, size, and quantity of contaminant particles on the filter membrane, and classify them by size grade. It meets the specification requirements for component cleanliness testing standards such as VDA19, ISO16232, NAS1638, ISO4406, ISO4407 and so on. The metallic particles, non-metallic particles and fibers which larger than 15μm‌ can be identified in 3 minutes. The repetition accuracy is above 98% (membrane scanned repeatedly for 10 times).

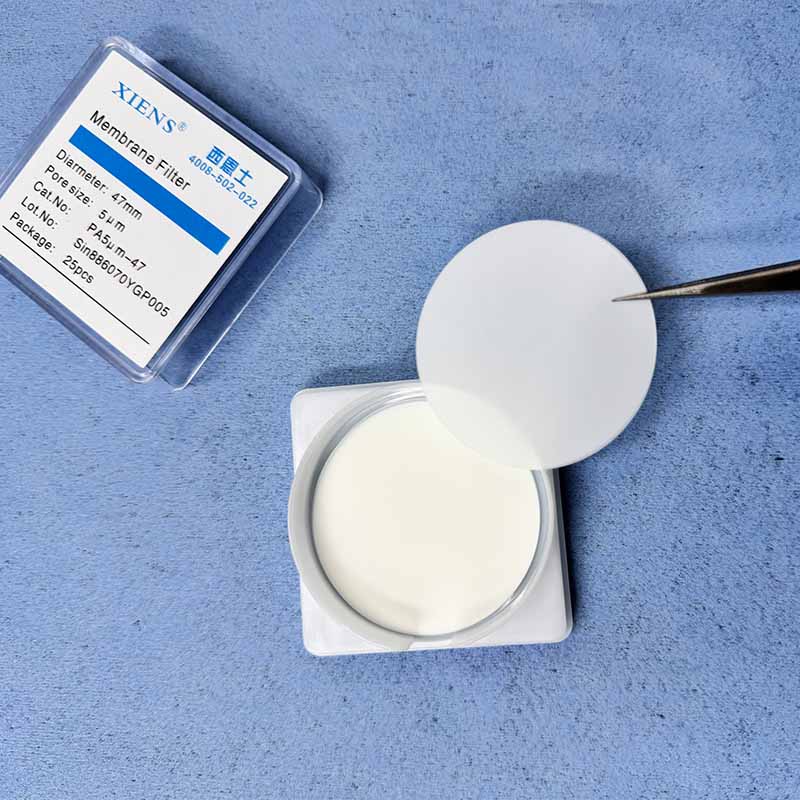

Diameter: 47mm Pore size: 5μm Cat. No: PA5u m-47 Lot. No: Sin886070YGP005 Package: 100pcs (25pcs each box) Optional Diameter: 47mm, 50mm Optional Pore size: 5μm, 10μm, 15μm, 25μm, 40μm, 50μm, 75μm, 100μm, 150μm, 200μm, 500μm,600μm Excellent high-temperature resistance Supports pre-filtration in solution Resistant to curling and deformation Suitable for technical cleanliness inspection of automotive components

CLS-S double chamber cleanliness cabinet with separate rinsing conical trough chamber and ultrasonic conical trough chamber, integrates pressure-rinsing cleaning, spray cleaning, side wall spray self-cleaning, ultrasonic cleaning, membrane sample preparation (particle extraction), online filtration and recovery of cleaning agents, and circulating fine filtration into one. The separate extraction chamber system is the optimal solution that divide the different products into two independent cabins for cleanliness testing; So as to avoid the mutual pollution caused by different extraction methods of different products in a cabin, in this way to make sure all test following up the ISO 16232 and VDA19.1 analysis processes.

Two separate chamber extraction system is the optimal solution that divide the different products into two independent cabins for cleanliness testing; So as to avoid the mutual pollution caused by different extraction methods of different products in a cabin, as well as the uncontrollable phenomenon. CLS-US double chamber component cleanliness cabinet with separate rinsing chamber and ultrasonic bowl chamber for low blank value at 50μm, at the same time the cabinet includes the following functions: pressure-rinsing cleaning, spray cleaning, side wall spray self-cleaning, ultrasonic cleaning, membrane sample preparation.
